Passenger Vehicle & Commercial Vehicle Brake Pads Hot Presses

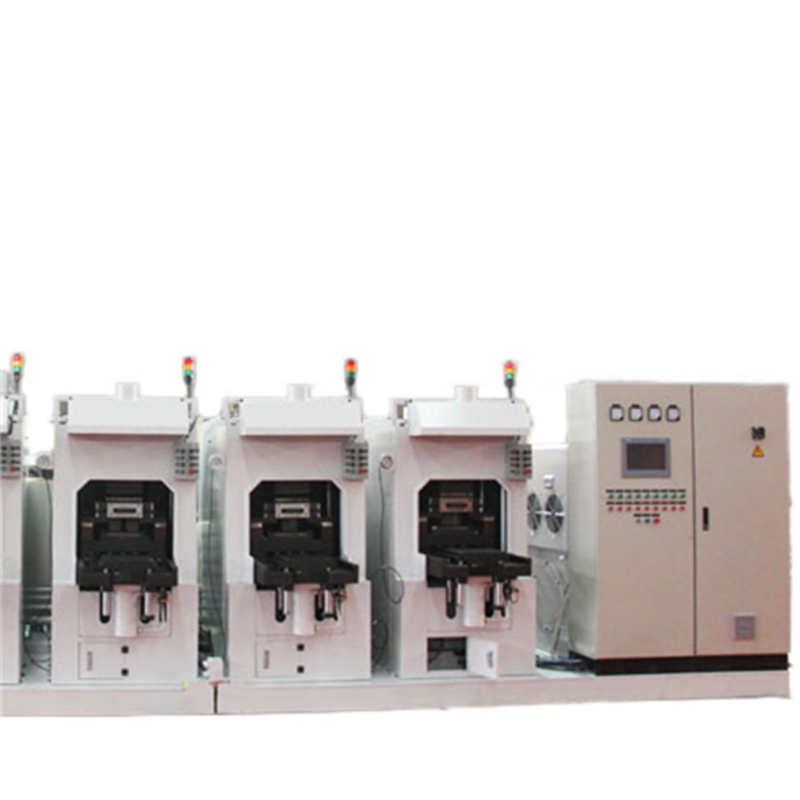

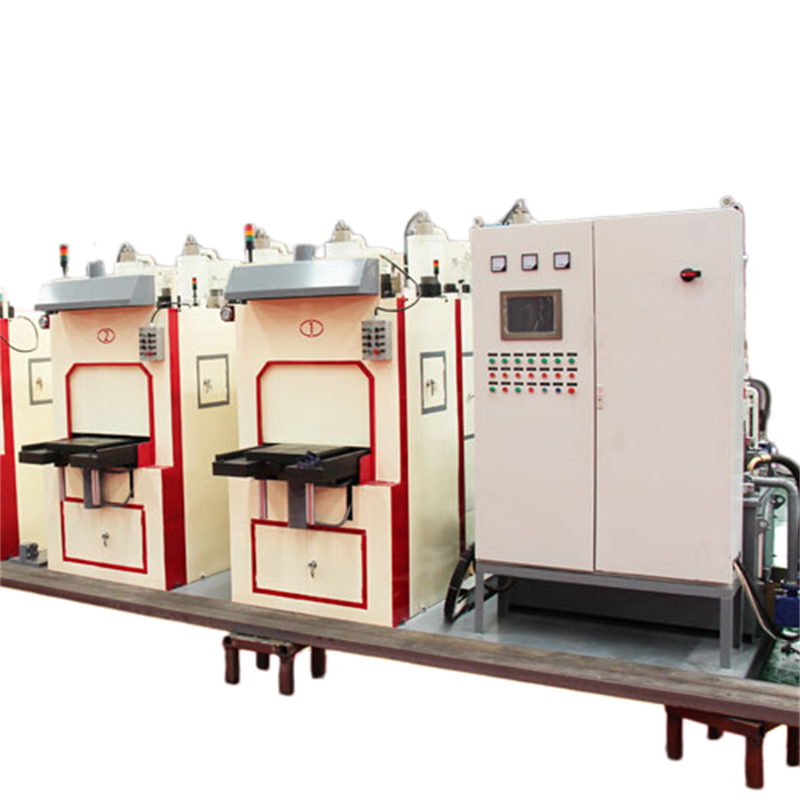

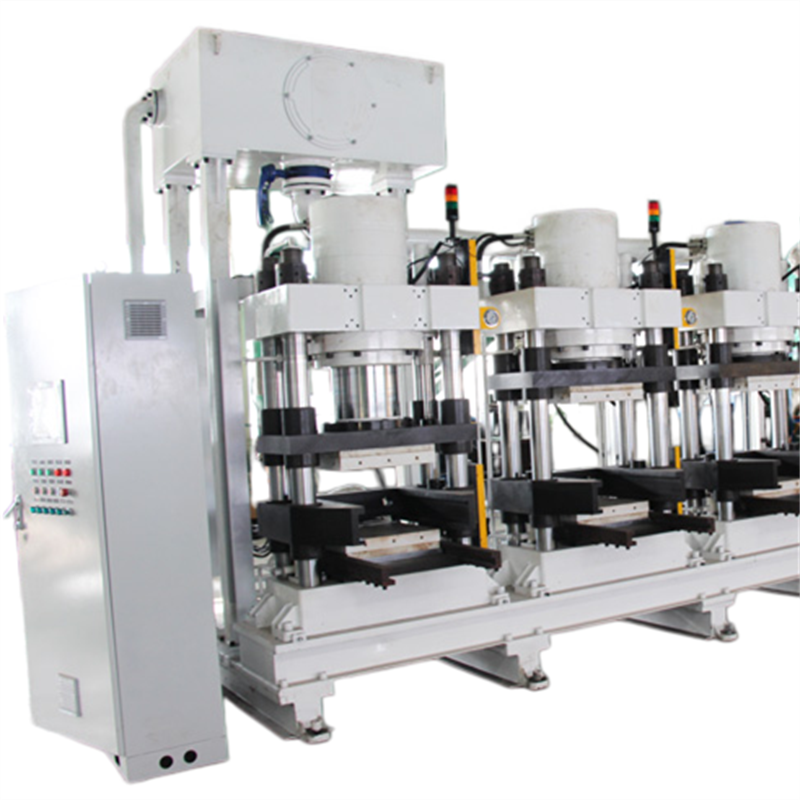

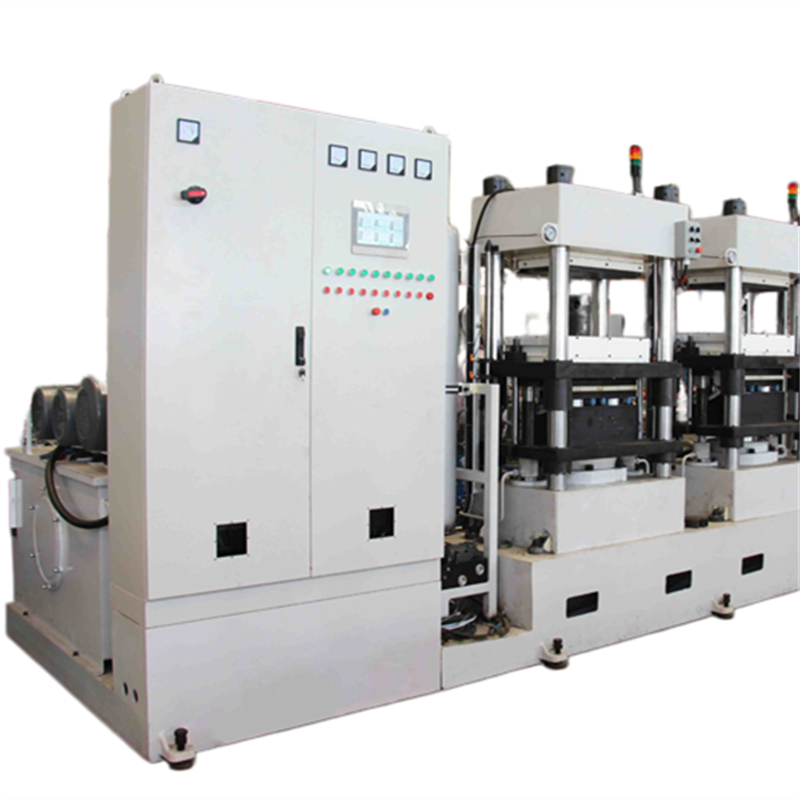

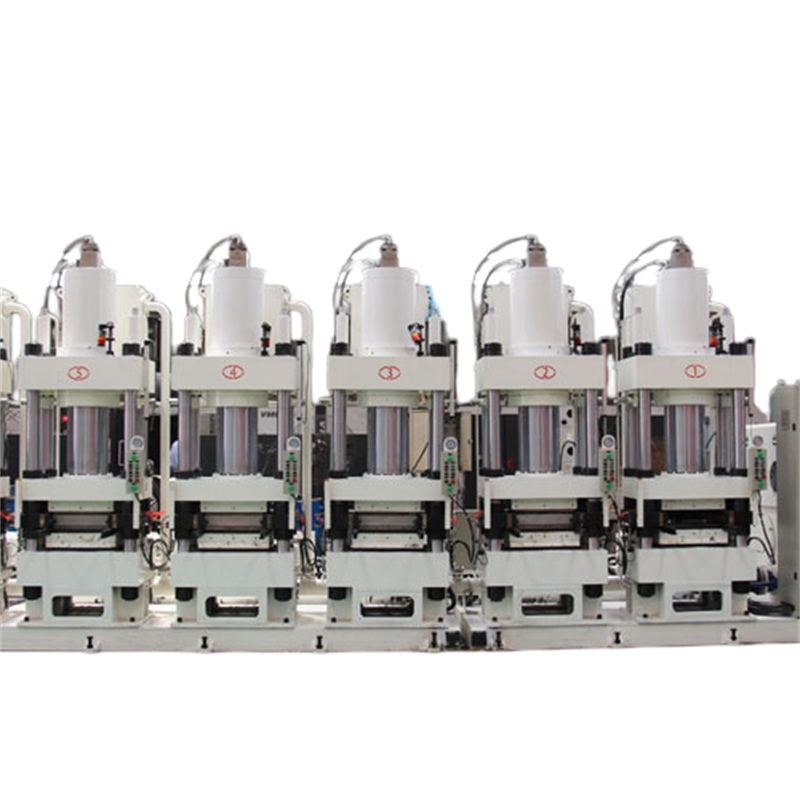

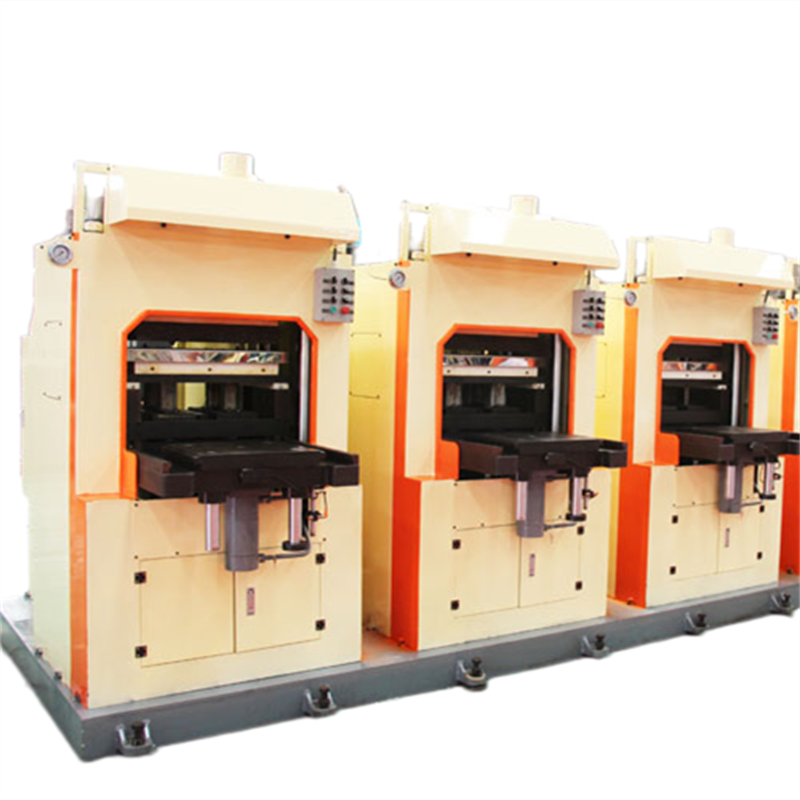

This 180T 6-station 4-cavity proportional hot press is used for hot press forming of small disc brake pads. Each machine is equipped with 6 pressing stations, with or without a separate weighing machine, and is manually operated.Each station produces 4 brake pads. It adopts an equal ratio pressure design with 2 sets of dual molds. Press parameters include pressing temperature, time, holding pressure, exhaust times, exhaust distance, and pressurization pressure for each exhaust step.
| Tonnage | Nominal Force (kN) | Balance Cylinder Stroke (mm) | Effective Stroke (mm) | Effective Worktable Size | Motor Power (kW) | Equipment Weight (kg) | Equipment Dimensions (L×W×H) (mm) | Number of Cavities | |
| Left-Right (mm) | Front-Back (mm) | ||||||||
| 160T | 1600 | 5 | 240 | 630 | 560 | 7.5 | 4300 | 9500×1800×2150 | 4 |
Equal ratio pressure design ensures uniform pressure for each brake pad, delivering excellent product consistency.
Precise temperature control: lower mold core heating and middle mold peripheral heating.
Multiple stations share one set of hydraulic and electrical systems, saving floor space.
Low-cost molds with high flexibility and easy replacement.
Low equipment investment cost.
