Applications
This machine is mainly used for the hot press forming process of fuel cell ceramic sheets.
This machine is mainly used for the hot press forming of fuel cell ceramic sheets. The control system supports both manual and automatic modes; electrical control adopts PLC; the middle mold adopts a stacked structure. Process parameters are set via the HMI, with real-time monitoring of temperature and pressure. Online monitoring and alarm functions are available for pressure, temperature, time and process parameter deviations.
| Serial No. | Item/Requirement | Parameter | Remark |

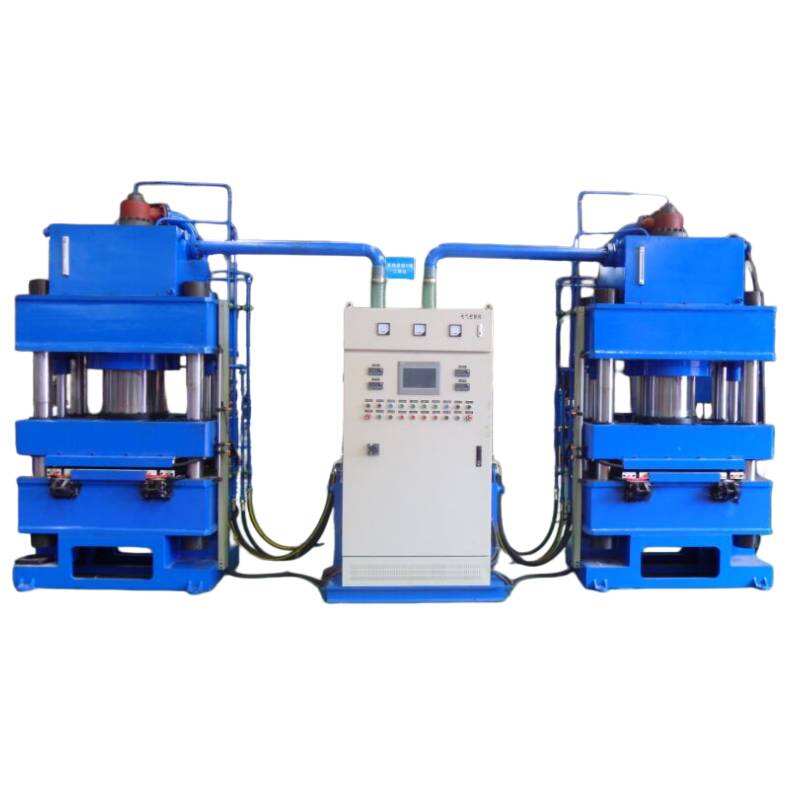

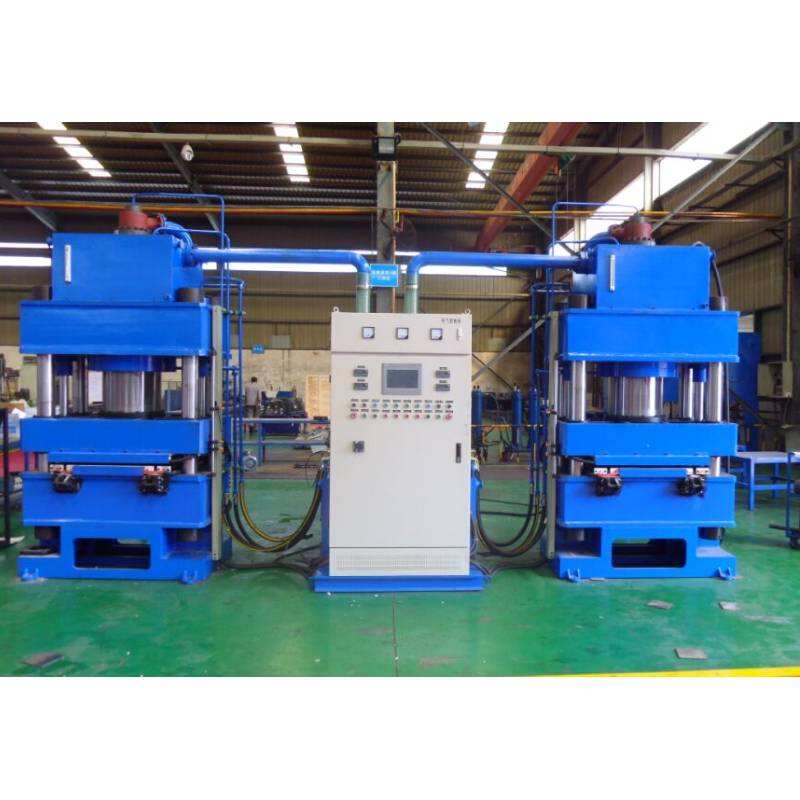

| 1 | Machine Type | Dual-station, 4-Pillar structure | - |
| 2 | Control Panel Position | Between two stations | - |
| 3 | Main Unit Color | Milky white | Electrical cabinet: microcomputer gray |
| 4 | Press Dimensions | 5000mm(L)×2200mm(W)×3100mm(H) | - |
| 5 | Worktable Size | 1200mm(L)×900mm(W)×900mm(H) | One set for loading/unloading per station |
| 6 | Middle Mold Height During Feeding | 900mm | - |
| 7 | Hydraulic Power Unit | Rear-mounted | Oil temperature display |
| 8 | Opening of Upper/Lower Heating Plates | 300mm | - |
| 9 | Upper/Lower Heating Plate Size | 900mm×900mm | - |
| 10 | Parallelism of Heating Plates | ±0.1mm | - |
| 11 | Pillar Parameter | Φ130mm | Manufactured per company standard |
| 12 | Distance Between Pillars | 1130mm×600mm | Manufactured per company standard |
| 13 | Heat Insulation Plate | Thermal conductivity 0.23, pressure resistance 250N/mm², heat resistance 250°C | Used between heating plates and machine body |
