Passenger Vehicle & Commercial Vehicle Brake Pads Hot Presses

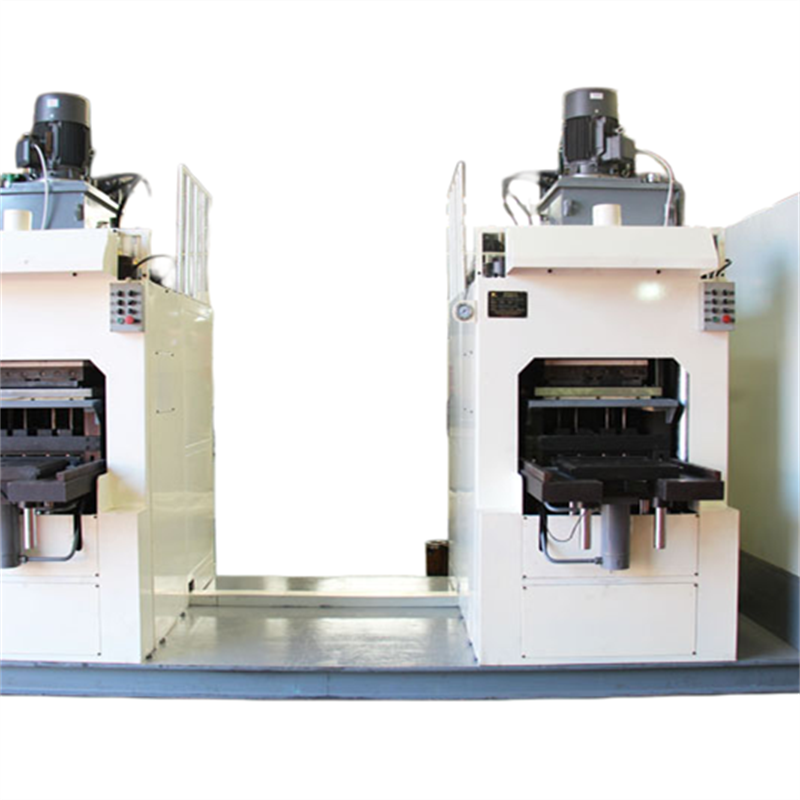

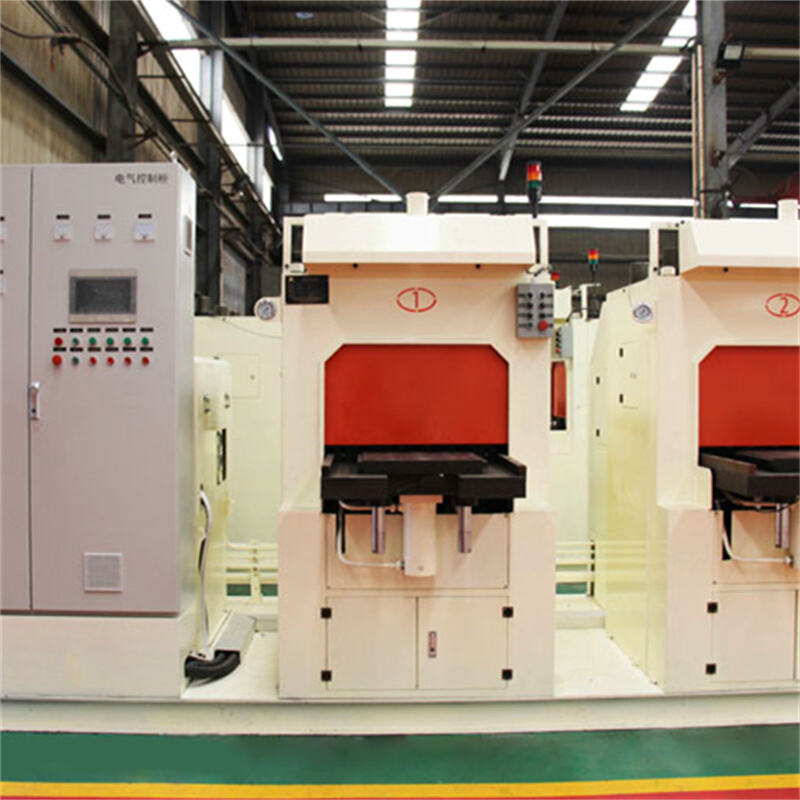

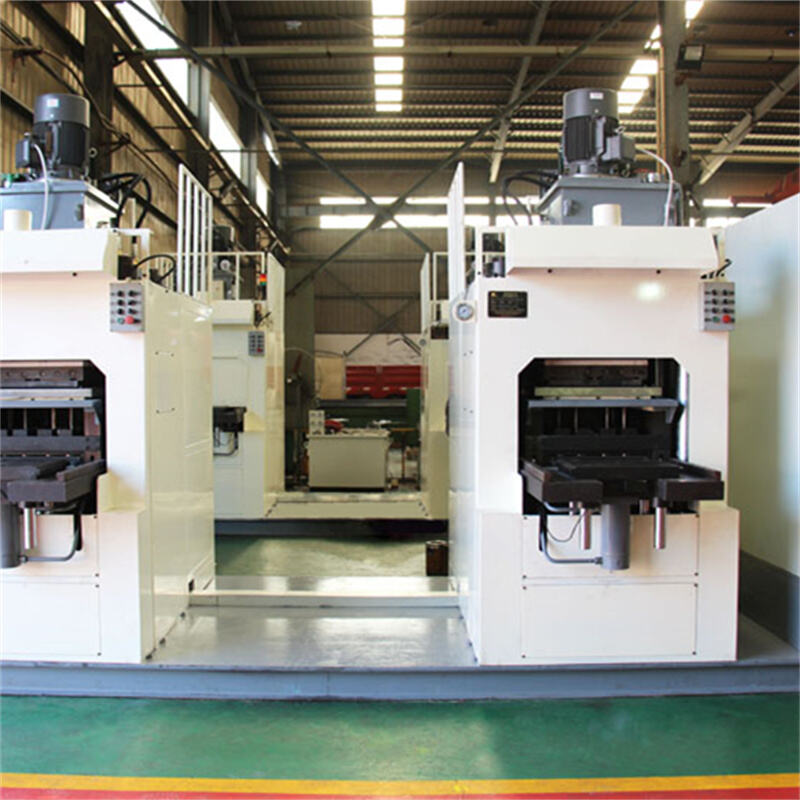

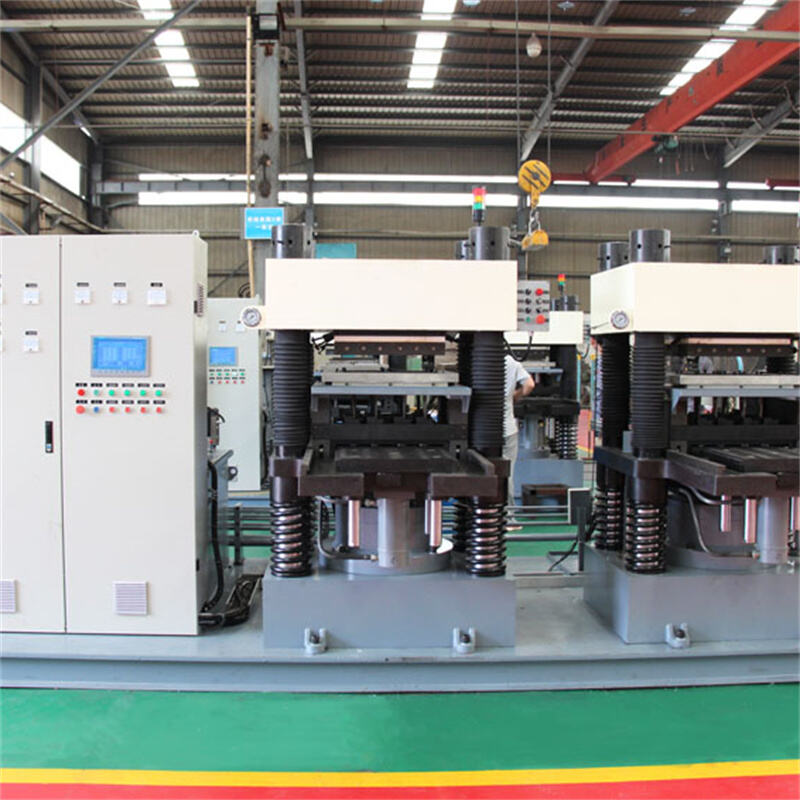

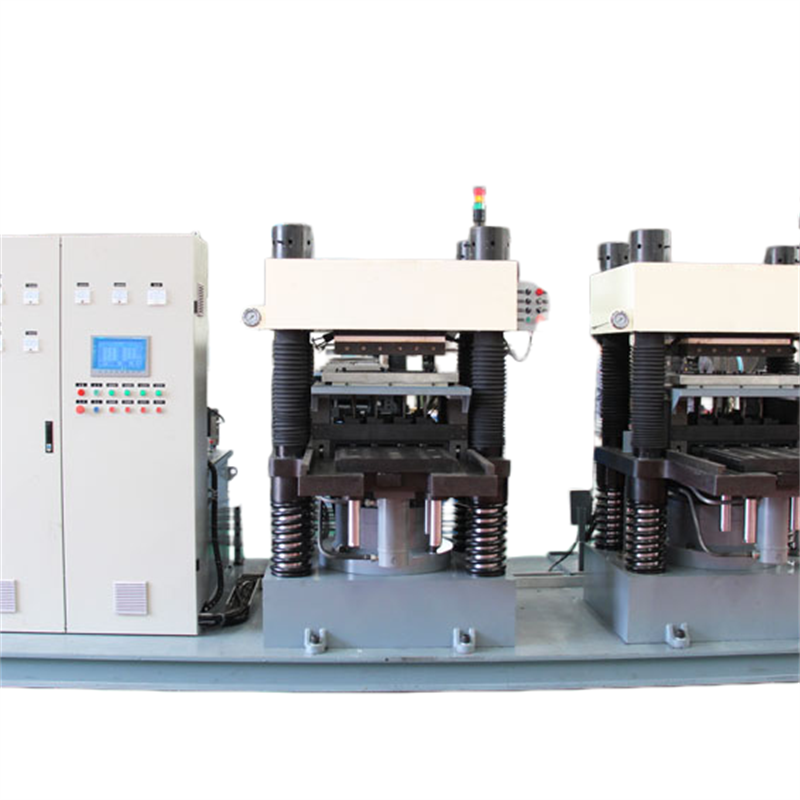

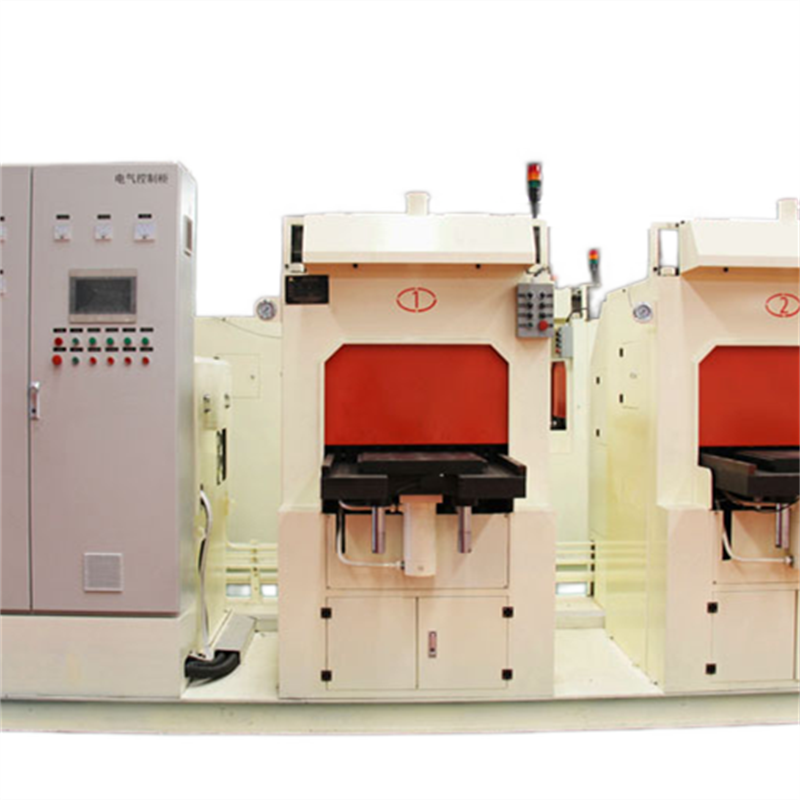

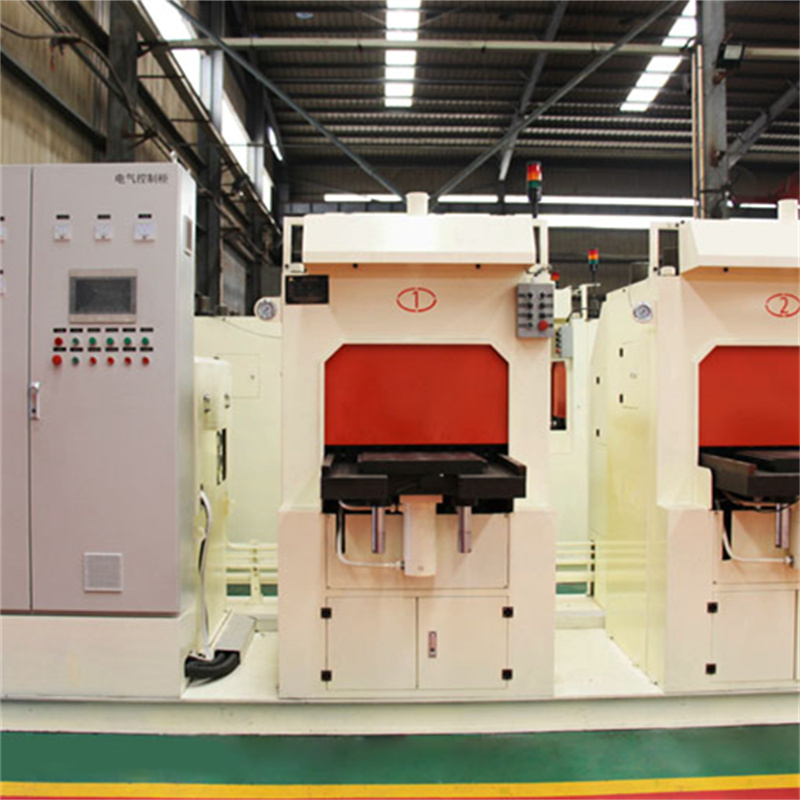

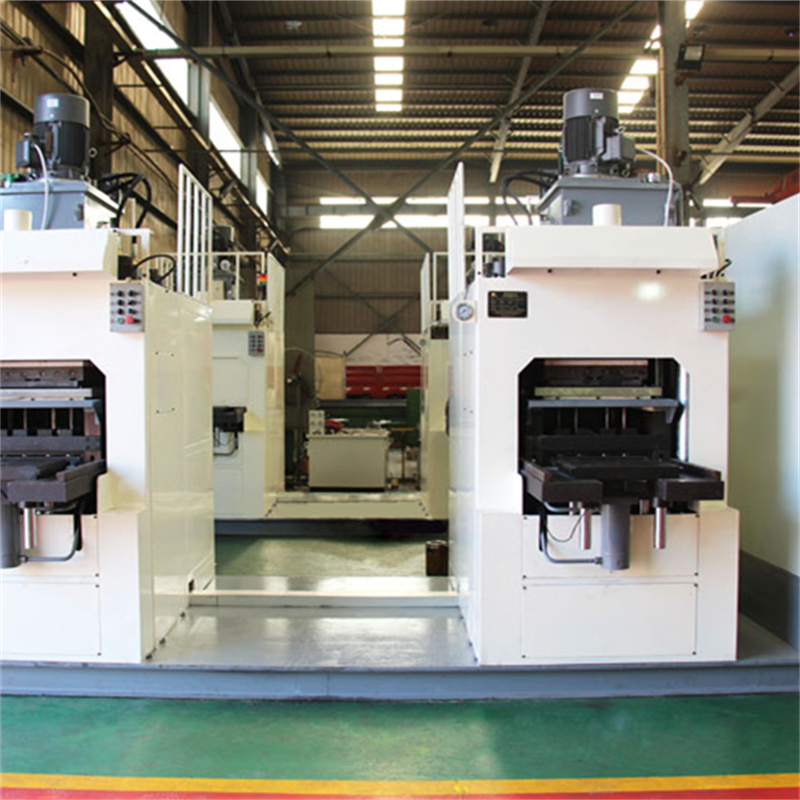

The 250T-300T 8-cavity equal ratio hot press is used for hot press forming of small disc brake pads. Each machine is equipped with 2, 4 or 6 pressing stations, with or without a separate weighing machine, and is manually operated.Each station produces 8 brake pads. It adopts an equal ratio pressure design with 4 sets of dual molds. Press parameters include pressing temperature, time, holding pressure, exhaust times, exhaust distance, and pressurization pressure for each exhaust step.
| Nominal Pressure (KN) | Working Pressure (MPa) | Worktable Height (mm) | Heating Power (KW) | Pressure Control Accuracy (MPa) | Temperature Control Accuracy (°C) | Preheating Time of Upper/Middle/Lower Molds (min) | Stroke of Isobaric Cylinder (mm) |
| 2500 | 20 | 1480 | 16.4 | ±0.5 | ±5 | <40 min | 55 |
Equal ratio pressure design ensures uniform pressure for each brake pad, delivering excellent product consistency.
Precise temperature control: lower mold core heating and middle mold peripheral heating.
Multiple stations share one set of hydraulic and electrical systems, saving floor space.
8 pieces produced per cycle, ensuring high production efficiency while guaranteeing product quality.
Low-cost molds with high flexibility and easy replacement.
Low equipment investment cost.
