250T 4-station Semi-Automatic Equal Proportional Hot Presses (Truss Type)

250T 4-station Semi-Automatic Equal Proportional Hot Presses (Truss Type)

Applications

Passenger Vehicle & Commercial Vehicle Brake Pads Hot Presses

Product Description

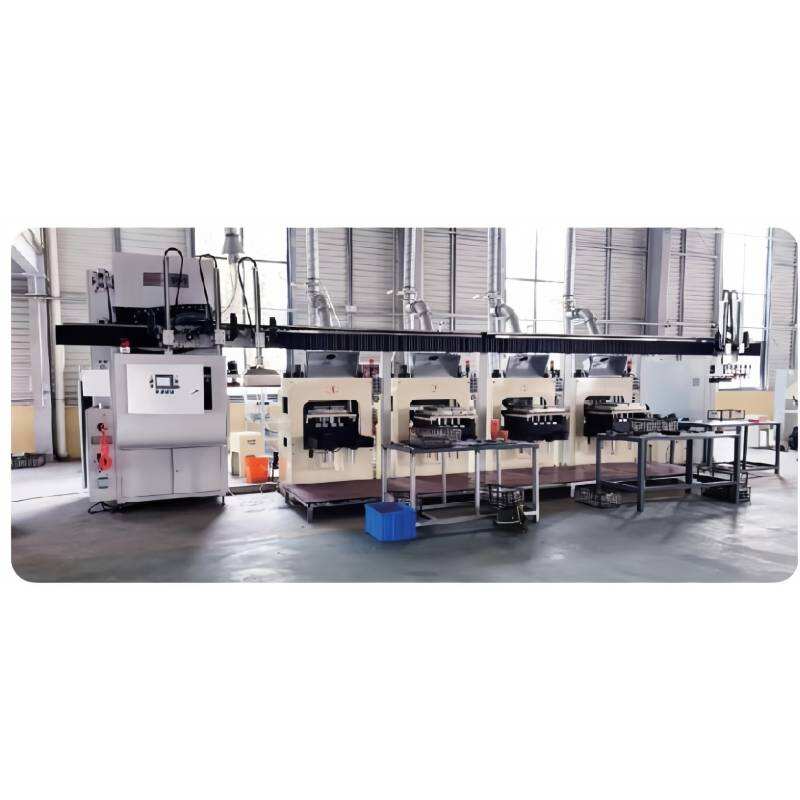

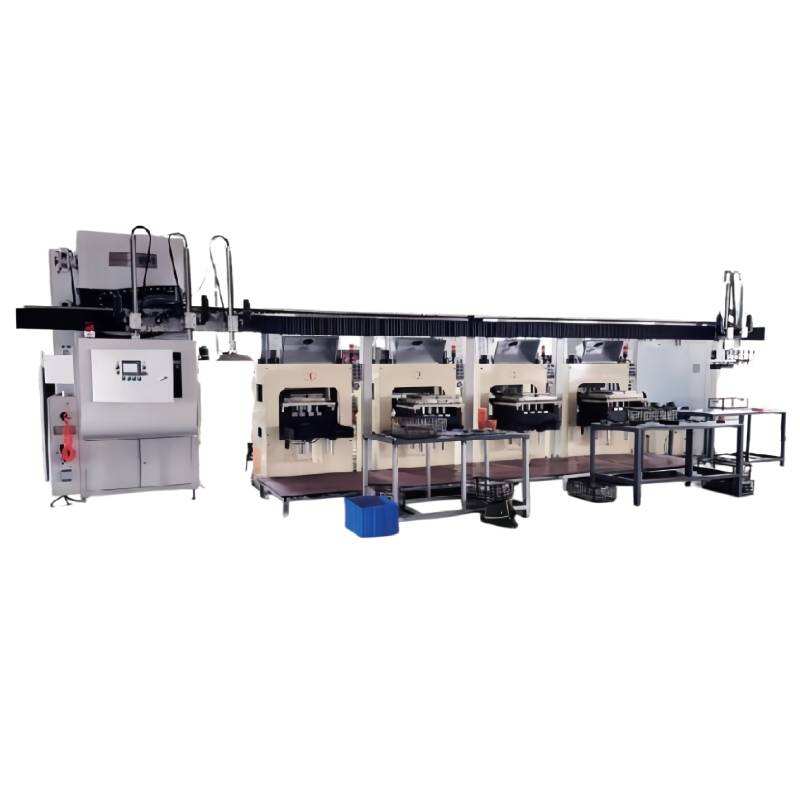

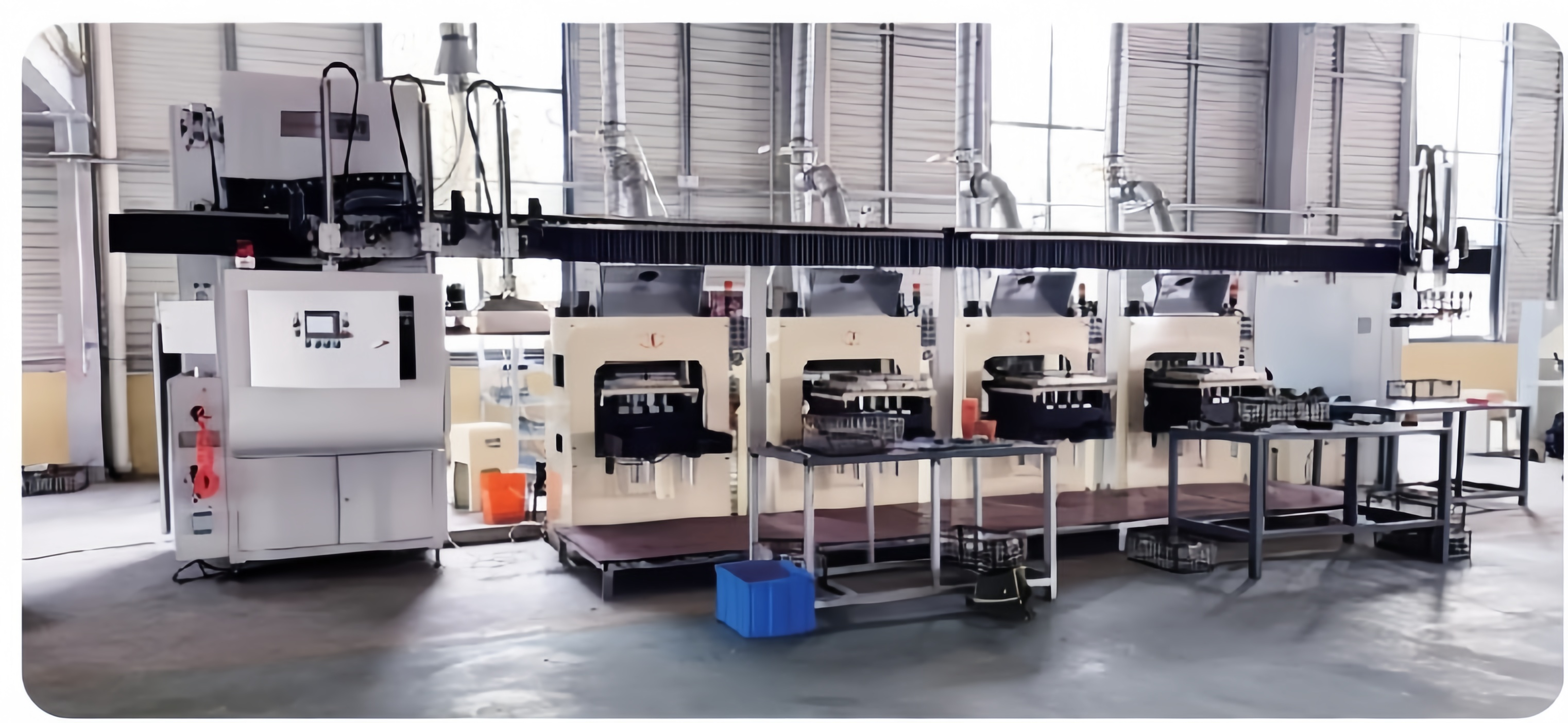

This 250T 4-station semi-automatic equal ratio hot press (truss type) is used for hot press forming of small disc brake pads. Each machine is equipped with 4 pressing stations and 2 weighing machines, adopting a truss manipulator to realize semi-automatic production.Each station produces 8 brake pads of one type. Pressing parameters of each station can be individually controlled and operated independently. Press parameters include pressing temperature, time, holding pressure, exhaust times, exhaust distance, and pressurization pressure for each exhaust step.The equipment integrates weighing machines, truss with manipulator, and equal ratio hot press into one integrated control system, realizing automatic parameter transmission, automatic weighing, automatic material receiving, automatic feeding, and automatic material distribution. Manual work includes mold cleaning, back plate placement, and finished product taking, achieving semi-automatic production of brake pad hot press forming.The equipment features simple structure, low cost, and high production efficiency.

Specifications

Serial Number	Project	Parameter
1	Number of workstations	4 stations
2	Automated implementation method	Truss manipulator
3	Equipment tonnage	250T
4	Equipment size	10500×2350×2850
5	Equipment power	78KW
6	Equipment efficiency	260 pieces/hour
7	Maximum back plate size	210mm(length)*75mm(width)
8	Maximum friction block size	160mm(length)*60mm(width)
9	Equipment noise	<80db
10	Quantity of material weighing machines	2 sets of 4-station weighing machines
11	Weighing accuracy	±159
