Passenger Vehicle & Commercial Vehicle Brake Pads Hot Presses

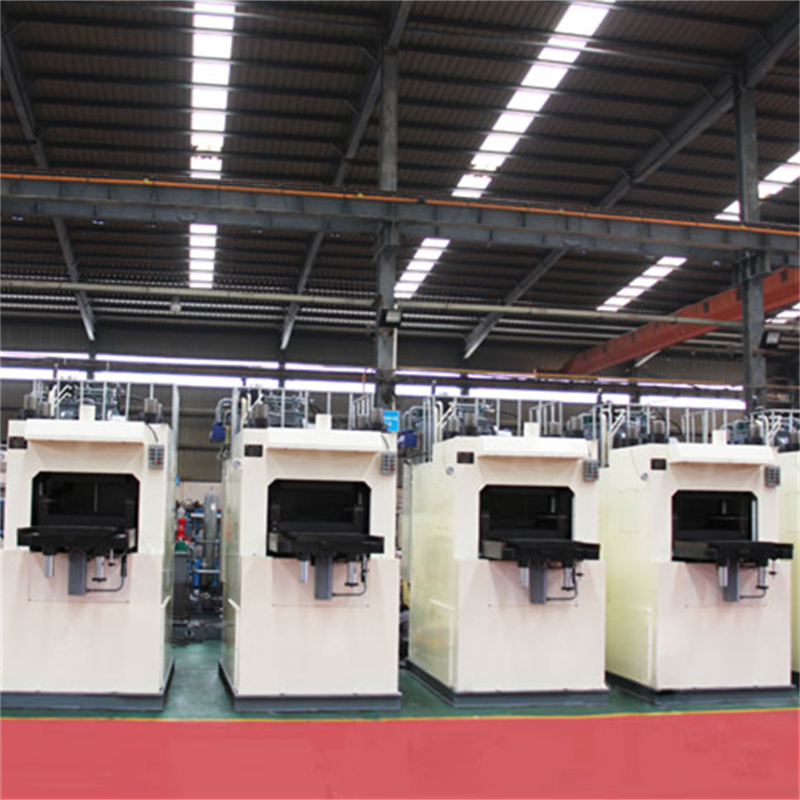

The 600T/1000T equal ratio hot press for large disc brake pads is used for hot press forming of big-disc brake pads. It adopts balance bar floating equal ratio pressure technology to further improve brake pad performance, reduce noise and vibration.It has strong adaptability and can support production from small batches to large batches.
| Tonnage | Nominal force KN | Working pressure Mpa | Back plate size mm | Heating power KW | Pressure control accuracy Mpa | Temperature control accuracy ℃ | Uper,midle and lower mold pre Heating time min | Layout size mm | Proportional pressure cylinder Travel distance mm |
| 600T | 6000 | 25 | 280X120 | 22 | ±0.3 | ±5℃ | 100 | 1800*2400*3400 | 5 |
| 1000T | 10000 | 28 | 280X120 | 22 | ±0.3 | ±5℃ | 100 | 2000*2600*3500 | 5 |
* Customized according to customer requirements
High product quality, uniform density, precise temperature and pressure control.
Low mold cost, modular design and compact structure.
Wide application range, suitable for small to large batch production.
Small footprint and attractive appearance.
Low operating cost and low energy consumption.
High efficiency, producing 50-60 large brake pads per hour.
