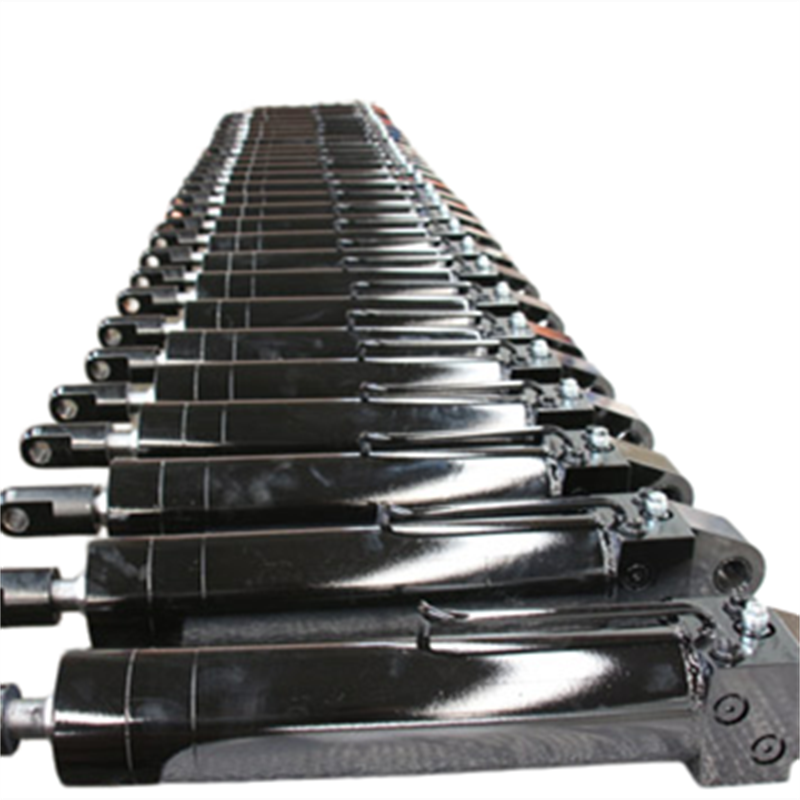

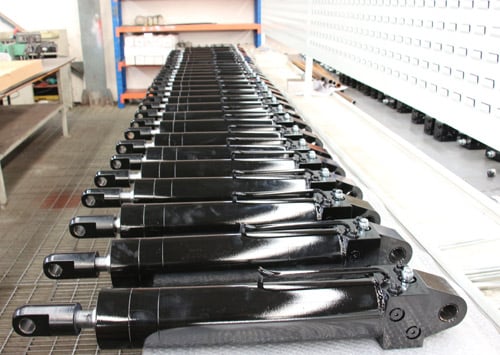

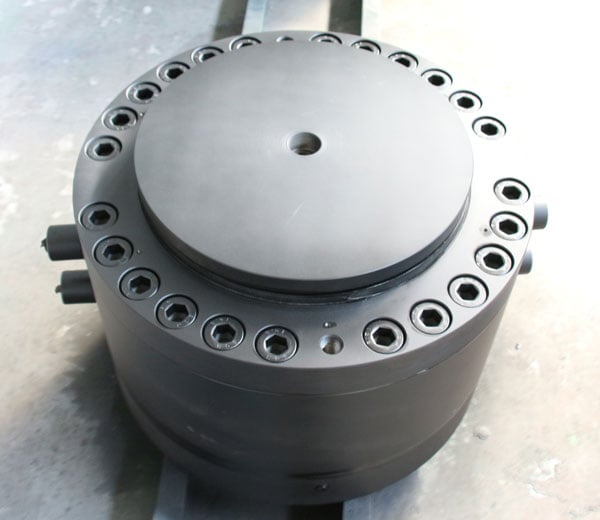

HSG Type Engineering Hydraulic Cylinder

Suitable for hydraulic systems of construction machinery, marine machinery, metallurgical,mining machinery, and other machinery.

Product Description

HSG Type Engineering Hydraulic Cylinder is a double-acting single-piston hydraulic cylinder, featuring diverse installation and connection methods and optional buffer device.

It is suitable for hydraulic systems of construction machinery, hoisting and conveying machinery, marine machinery, metallurgical and mining machinery, and other machinery.

Specifications

Cylinder Bore /mm	Piston Diameter /mm			Working Pressure 16MPa
	Speed Ratio φ			Thrust Force /N	Tension Force /N
	1.33	1.46	2	Thrust Force /N	φ=1.33	φ=1.46	φ=2
40	20	22	25▲	20110	15080	14020	12250
50	25	28	32▲	31420	23560	21560	18550
63	32	(35)	45	49880	37010	34480	24430
80	40	45	(55)	80430	60320	54980	42410
(90)	45	50	63	101790	76340	70370	51910
100	50	(55)	70	125660	94250	87650	64090
(110)	(55)	63	80	152050	114040	102180	71630
125	63	70	90	196350	146470	134770	94560
(140)	70	80	100	246300	184730	165880	120640
150	(75)	(85)	(105)	282740	212060	191950	144200
160	80	90	110	321700	241270	219910	169650
(180)	90	100	125	407150	305360	281490	210800
200	100	110	140	502660	376990	350600	256350
(220)	110	125	160	608210	456160	411860	286510
250	125	140	180	785400	589050	539100	378250
320	–	180	220	1286800	–	879650	678590

Notes:

① For all structures with the same cylinder bore and piston rod diameter, the thrust force and tension force are identical.② Speed ratio φ is the ratio of the effective areas on both sides of the piston. The value marked with <sup>▲</sup> corresponds to a speed ratio of φ=1.7.③ Maximum Stroke:

When φ=1.33, S=8D (D = cylinder bore)

When φ=1.46, S=10D (D = cylinder bore)

When φ=2, S=12D (D = cylinder bore)④ According to GB/T2348-93, cylinder bores marked in ( ) are non-preferred selections, and piston rod diameters marked in ( ) are non-standard diameters.
