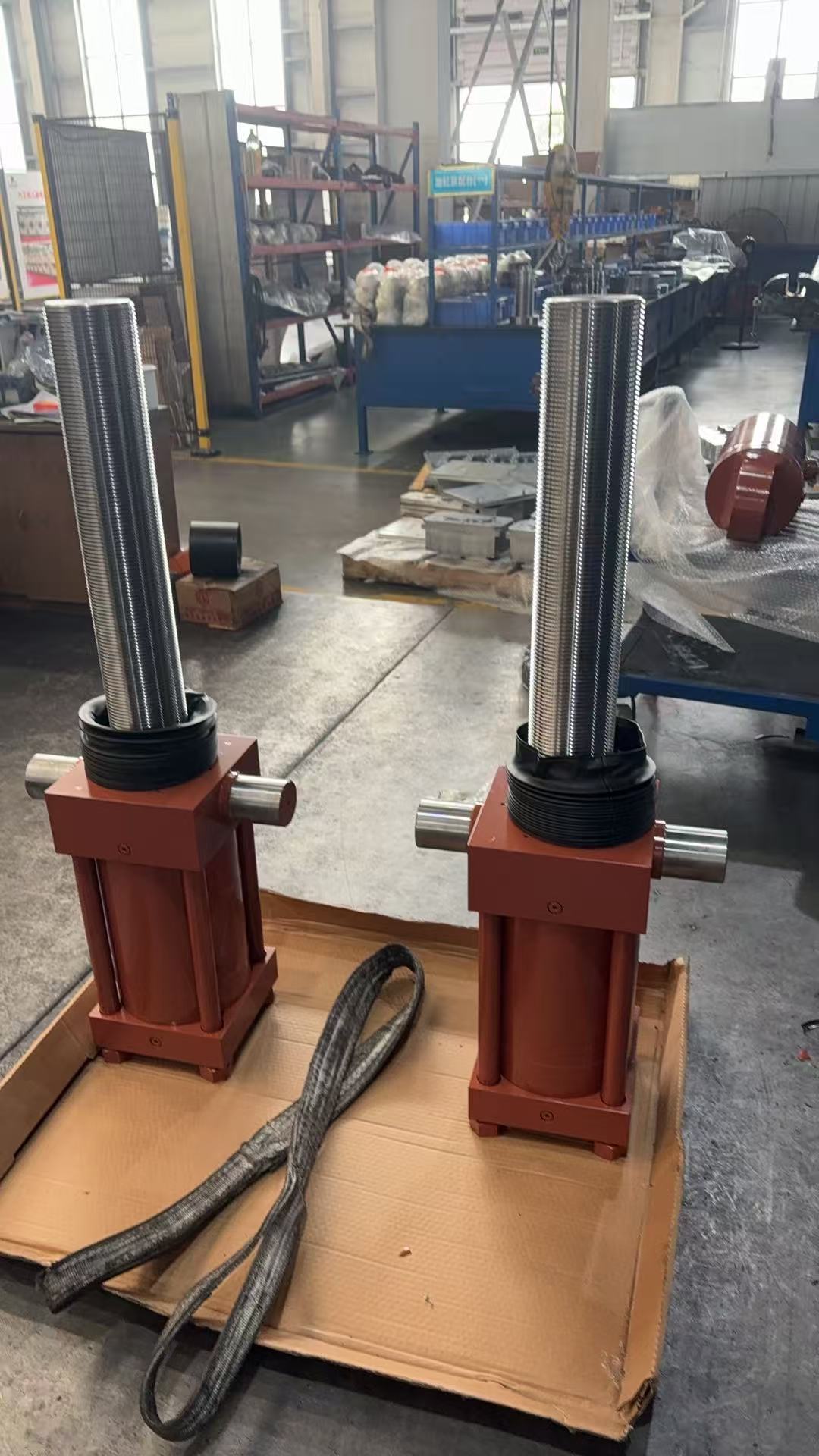

CJT Series Standard Hydraulic Cylinders (7/14/21 MPa)

CJT Series Standard Hydraulic Cylinders (7/14/21 MPa)

Excellent low-speed performance with high motion accuracy.

Smooth cushioning effect.

Product Description

Designed to meet the wide-ranging needs of general industrial machinery, especially machine tools, the CJT series offers a variety of mounting types.

The cushioning mechanism has been specifically improved to achieve minimal cushioning impact and smooth stopping performance.

Additionally, a version with a sliding proximity switch mounted on the cylinder body is available, enabling easy position detection. This CJT series with proximity switch has been fully standardized.

Specifications

Item	Model	CJT70	CJT140
Bore Diameter (mm)	—	32, 40, 50, 63, 80, 100, 125, 140, 150, 160, 180, 200, 220, 250	Same as left
Mounting Types	—	SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC	SD, LA, LB, FC, FD, FE, FF, FY, CA, CB, TA, TC
Working Pressure ★1 (MPa)	—	7	14
Max. Allowable Pressure ★1 (MPa)	Head Side Internal Pressure	9	18
	Rod Side Internal Pressure / Rod Dia. Mark A	15	18
	Rod Side Internal Pressure / Rod Dia. Mark B	13.5	18
	Rod Side Internal Pressure / Rod Dia. Mark C	11	14
Proof Pressure ★1 (MPa)	—	10.5	21
Min. Working Pressure (MPa)	—	Less than 0.3	Less than 0.3
Max. Operating Speed (mm/s)	Bore 32–63	400	400
	Bore 80–125	300	300
	Bore 140–250	200	200
Min. Operating Speed (mm/s)	—	8	8
Max. Stroke ★2 (mm)	Bore 32	1000	1000
	Bore 40	1200	1200
	Bore 63	1600	1600
	Bore 100–250	2000	2000
Piston Rod Thread Accuracy	—	JIS B 0211-6g (Class 2)	JIS B 0211-6g (Class 2)
Ambient Temperature Range (℃)	—	-10 ~ +80	-10 ~ +80

Item	Specification
Bore Diameter (mm)	40, 50, 63, 80, 100, 125, 140, 160
Mounting Type	SD, LA, FA, FB, CA, TC
Operating Pressure*¹	21 MPa
Max. Allowable Pressure*¹ - Cap Side Internal Pressure	24.5 MPa
Max. Allowable Pressure*¹ - Rod Side Internal Pressure	26.5 MPa
Proof Pressure*¹	31.5 MPa
Min. Operating Pressure	0.3 MPa
Max. Operating Speed	300 mm/s
Min. Operating Speed	8 mm/s
Max. Stroke*² (mm) - Bore Diameter 40	1500
Max. Stroke*² (mm) - Bore Diameter 50-160	2000
Thread Accuracy of Piston Rod Head	JISB0211-6g (Class 2)
Ambient Temperature Range	-10～+80℃
