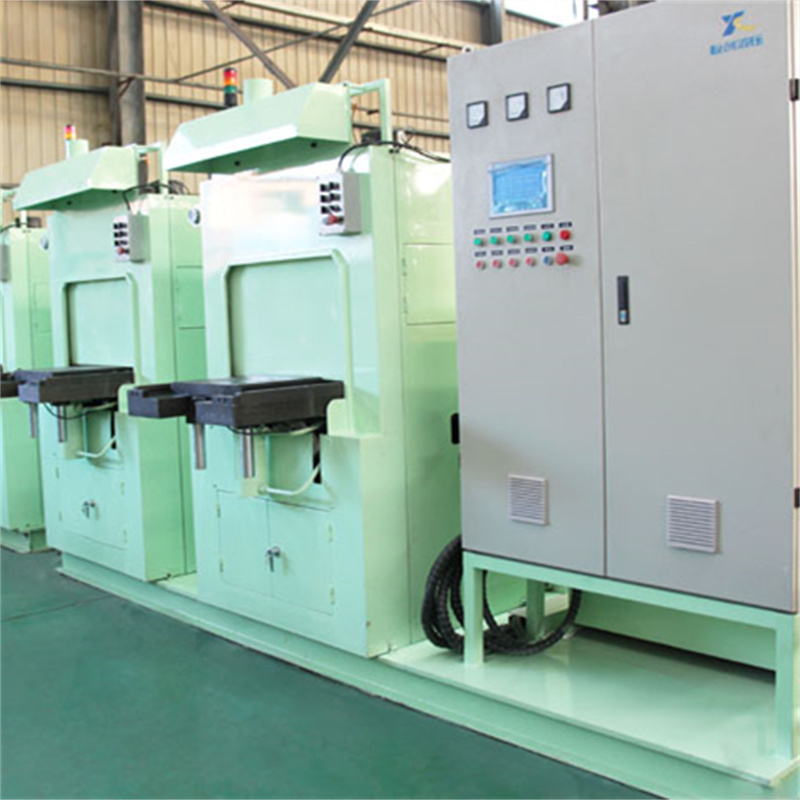

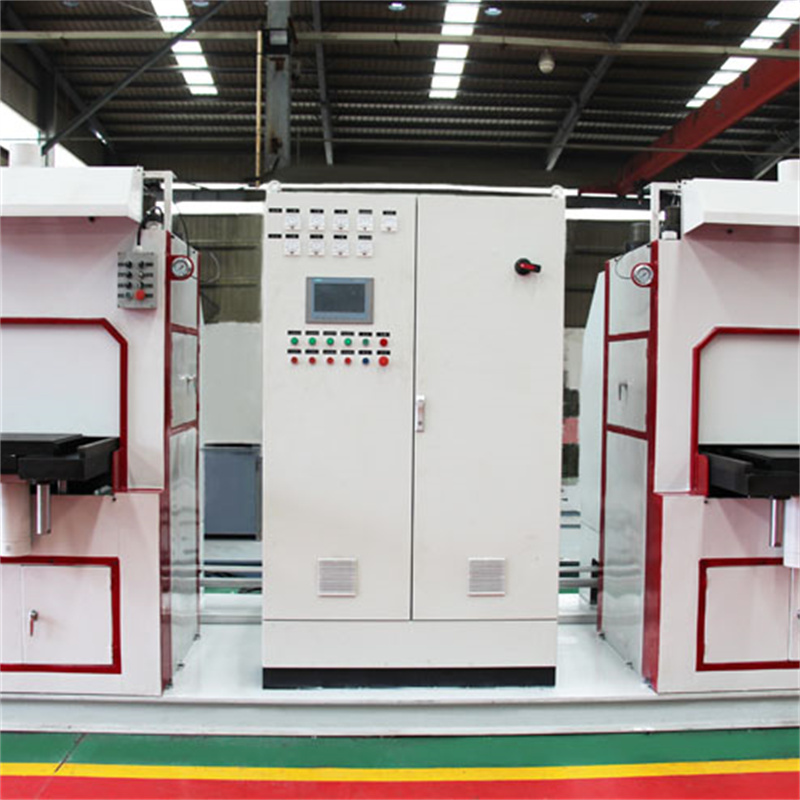

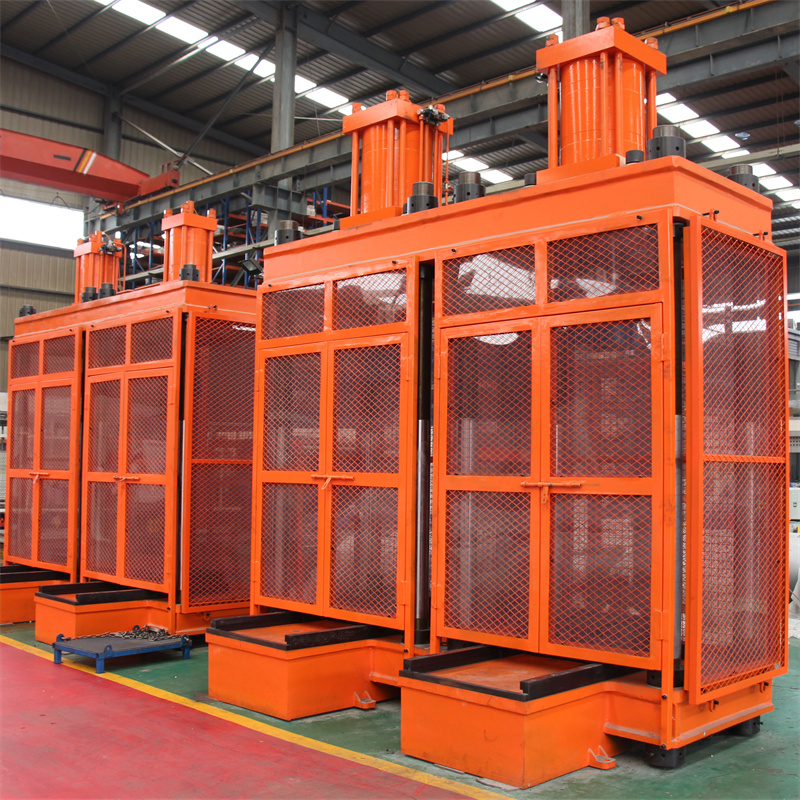

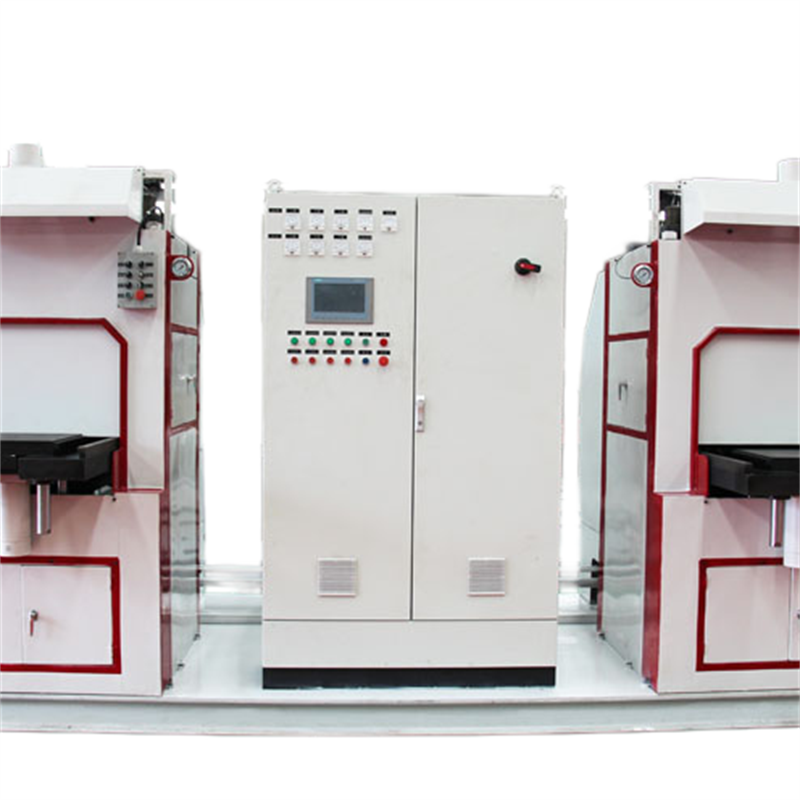

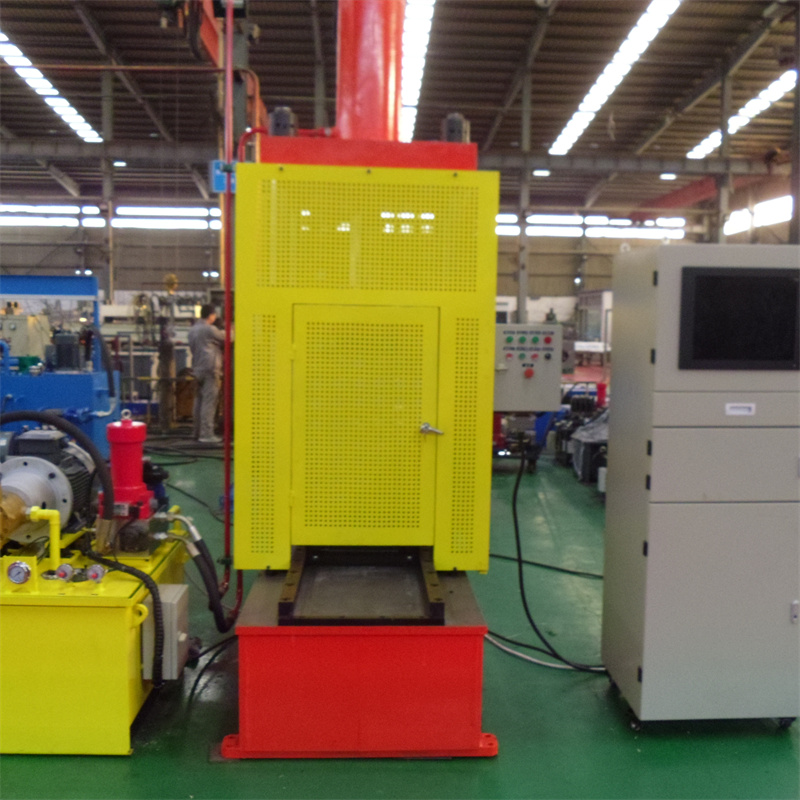

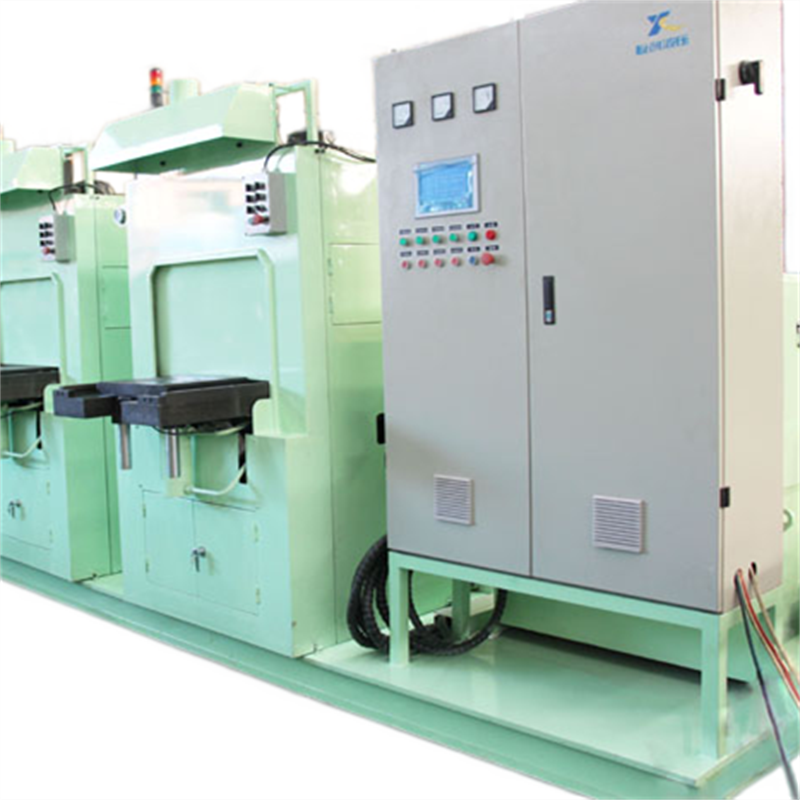

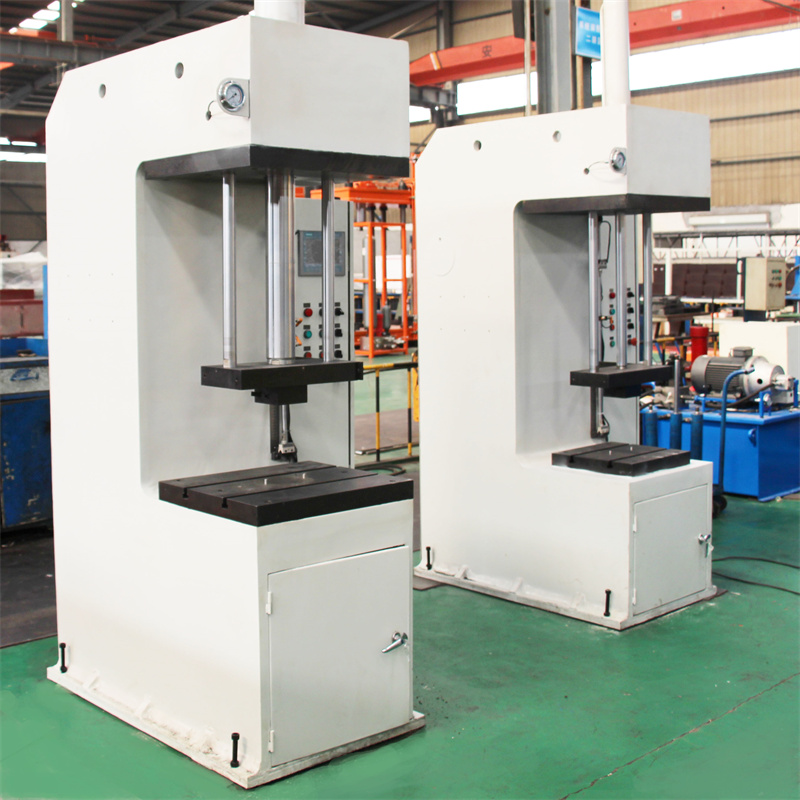

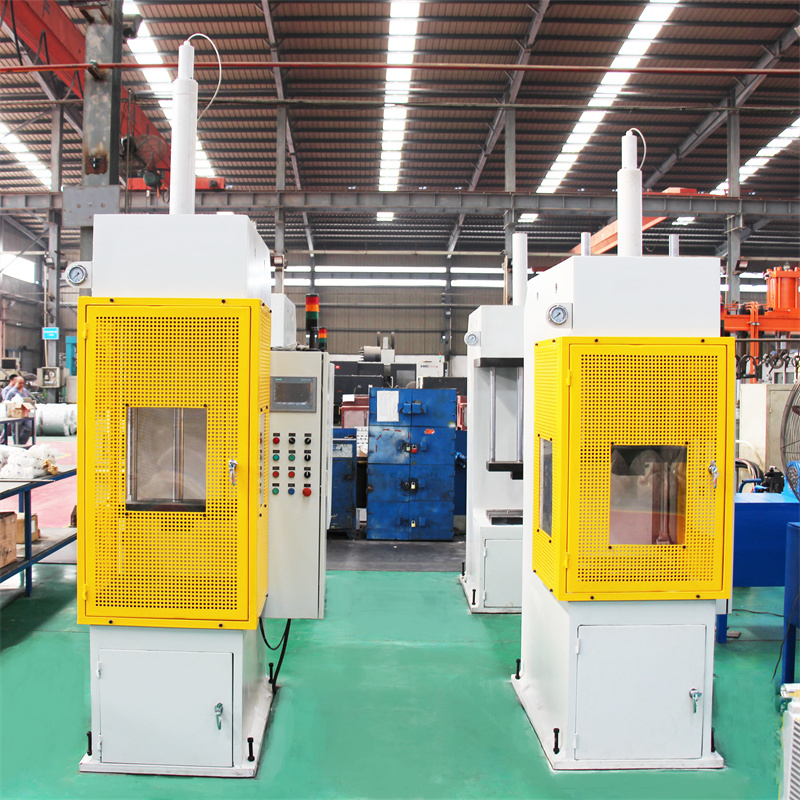

General Press Machine

Applications

Suitable for various Cold & Hot press equipment.

Product Description

Pressing mode: YCLY - Cold Pressing, YCRY - Hot Pressing

Series code: A - Inverted oil cylinder, B - Upright oil cylinder, C - Horizontal oil cylinder, V - Mini type

Tonnage level: 100T - 100 Ton, 150T - 150 Ton, 200T - 200 Ton, etc.

Operation & monitoring mode: I - Digital, Ⅱ - Touch screen

Tonnage	Nominal Force KN	Return Force KN	Max. Working Pressure Mpa	Effective Stroke mm	Working Table Effective SizeLeft-Right mm	Working Table Effective SizeFront-Rear mm	Motor Power KW	Net Weight of Host KG	Host Dimensions (LWH) mm	Pillar Diameter mm	Master Cylinder Bore mm
10T	100	50	25	270	330	300	2.2	300	5004001500	40	80
20T	200	80	25	300	420	320	2.2	500	5804201550	45	100
40T	400	100	25	300	500	380	3	800	6604501550	45	150
63T	630	100	25	320	580	450	5.5	1000	7205801600	50	180
100T	1000	250	25	320	630	560	5.5	1500	7806601660	60	230
150T	1500	320	25	360	630	560	7.5	2800	8106502300	80	320
200T	2000	320	25	400	700	650	11	4500	12007202700	100	360
300T	3000	340	25	600	800	800	15	8000	13509803000	120	400
315T	3150	340	25	600	800	800	15	8200	13509803000	120	400
400T	4000	500	25	600	1100	900	30	10000	15009003600	130	500
630T	6300	610	25	800	1260	1060	30	15000	190013004720	150	560
800T	8000	720	25	800	1600	1480	37	12000	—	180	650
1000T	10000	1300	25	1000	2200	1800	45	15000	—	200	720
