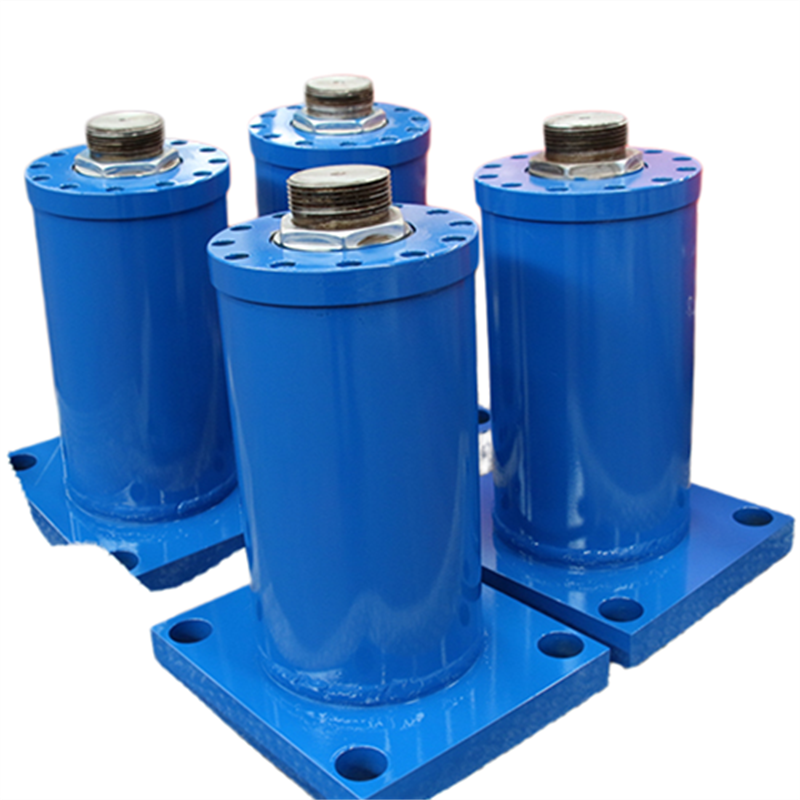

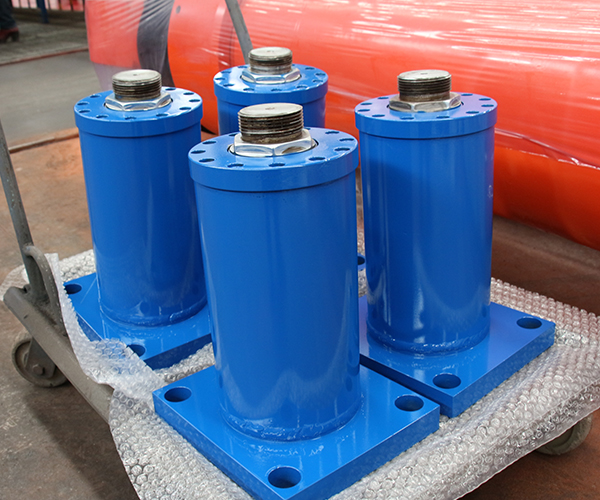

Y-HG1 Metallurgical Equipment Hydraulic Cylinder

for metallurgical equipment is a double-acting single-piston hydraulic cylinder

Product Description

Y-HG1 standard hydraulic cylinder for metallurgical equipment is a double-acting single-piston hydraulic cylinder with 17 specifications ( bore diameter: 40-320mm), rated pressure: 16MPa, and can be equipped with a buffer device.This series of hydraulic cylinders has 13 installation and connection types. Except for the axial foot mount type, the installation and connection dimensions comply with ISO6021/1-1981.The thread of the piston rod end also complies with GB2350-80.Suitable for metallurgical equipment with working temperature of -30℃~+80℃ and working medium of hydraulic oil or emulsion.

Specifications

Bore/mm	Piston Rod/mm	Speed Ratioφ	Working Pressure 16MPa		Maximum Stroke /mm						Remarks
Bore/mm	Piston Rod/mm	Speed Ratioφ	Thrust /N	Tension /N	S₁	S₂	S₃	S₄	S₅	S₆
40	22	1.46	20110	14020	540	115	190	90	140	350	S₁: Mounting type: front flange or axial foot bracket, piston rod end with ear ringS₂: Mounting type: front flange or axial foot bracket, piston rod end without ear ringS₃: Mounting type: rear flange, piston rod end with ear ringS₄: Mounting type: rear flange, piston rod end without ear ringS₅: Mounting type: rear trunnion or rear single ear ring, piston rod end with ear ringS₆: Mounting type: front trunnion, piston rod end with ear ringS₇: Mounting type: middle trunnion, piston rod end with ear ringi.e., S₂ = S₆ - L (L = mounting distance)Note: L value is selected according to Table 3-9
	28	2		10250	960	260	420	170	290	650
50	28	1.46	31420	21560	730	180	300	130	210	480
	36	2		15130	1360	390	620	240	430	920
63	36	1.46	49880	33590	990	260	430	180	290	560
	45	2		24430	1640	490	750	300	520	1120
80	45	1.46	80420	54980	1240	330	550	230	370	830
	56	2		41020	1990	600	920	360	640	1360
(90)	50	1.46	101790	70370	1370	370	600	250	450	910
	63	2		51910	2080	620	960	380	660	1420
100	56	1.46	125660	86260	1550	420	680	280	470	1040
	70	2		64080	2320	700	1070	420	740	1580
(110)	63	1.46	152050	102180	1700	470	760	310	520	1140
	80	2		71630	2660	800	1240	480	860	1830
125	70	1.46	196350	134770	1865	520	830	340	570	1250
	90	2		94560	2980	920	1390	540	970	2050
(140)	80	1.46	246300	165880	2150	620	970	390	670	1460
	100	2		120640	3190	970	1460	560	1020	2150
(150)	(85)	1.46	282740	191950	2280	660	1030	410	720	1550
	(105)	2		144200	3160	990	1500	580	1040	2200
160	90	1.46	321700	219910	2330	670	1050	420	730	1580
	110	2		169650	3210	1000	1510	590	1050	2220
(180)	100	1.46	407150	281490	2560	740	1160	470	800	1740
	125	2		210800	3610	1110	1680	650	1170	2480
200	110	1.46	502650	350600	2780	800	1250	510	870	1880
	140	2		256350	4120	1270	1920	740	1340	2830
(220)	125	1.46	608210	411860	3240	940	1470	590	1020	2210
	160	2		286510	4660	1440	2180	840	1520	3210
250	140	1.46	785400	539100	3590	1040	1630	650	1130	2440
	180	2		378250	4860	1490	2270	880	1580	3340
(280)	160	1.46	985200	663500	3810	1100	1720	690	1190	2580
	200	2		482550	5210	1590	2420	940	1690	3570
(320)	220	1.46	1286800	879650	4600	1350	2100	840	1460	3130
	280	2		678580	5800	1780	2700	1050	1880	3980
