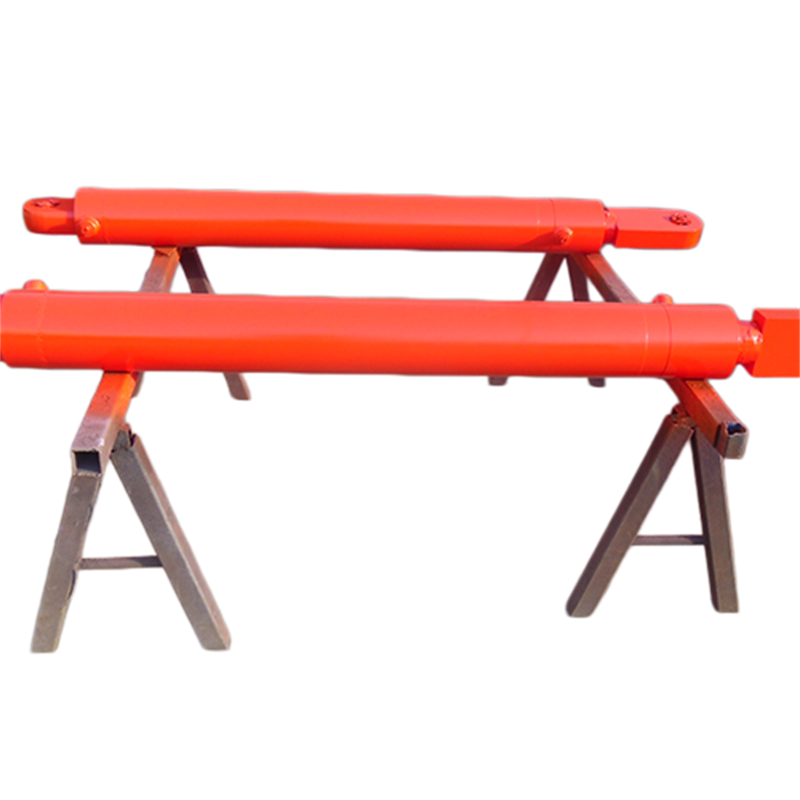

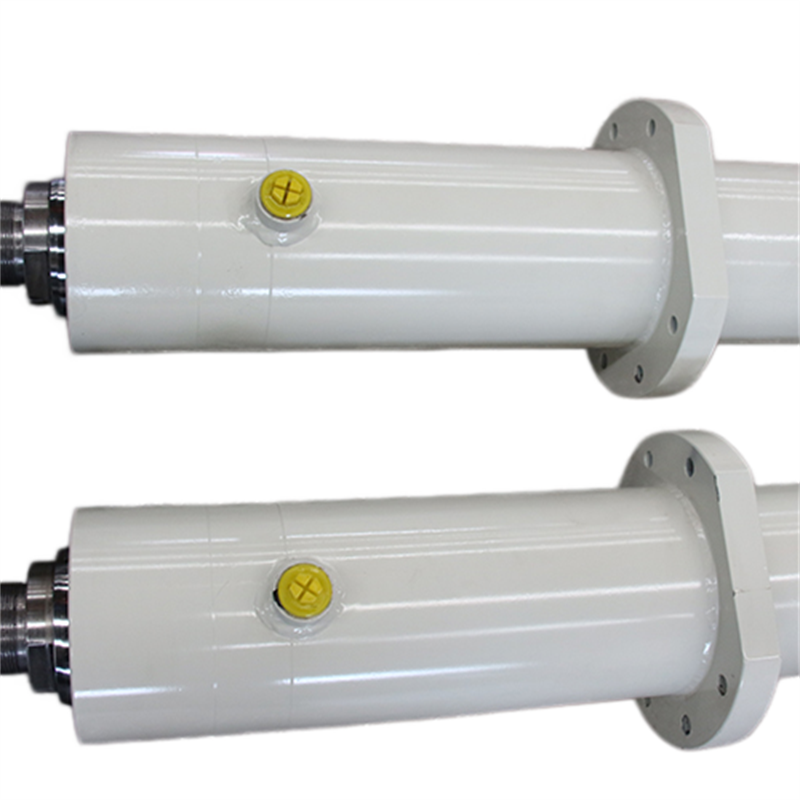

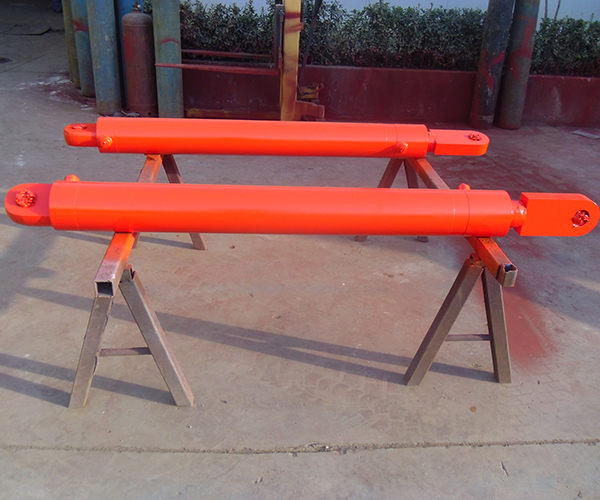

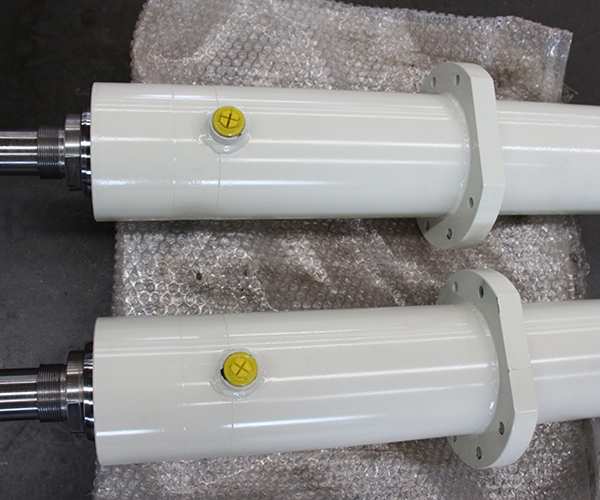

JB2162-77/91 Heavy Duty Hydraulic Cylinder for Metallurgical Equipment

JB2162-77/91 Heavy Duty Hydraulic Cylinder for Metallurgical Equipment

is a standard cylinder mainly used in heavy machinery and other industries.

Product Description

JB2162-77/91 hydraulic cylinder is a standard cylinder issued by the Ministry of Machinery Industry, mainly used in heavy machinery and other industries.The working pressure of the hydraulic cylinder is P ≤16MPa, and the suitable ambient medium temperature is -30℃~+80℃.

Specifications

Hydraulic Cylinders for Heavy Metallurgical Equipment JB2162-77

Cylinder Bore D /mm	Piston Stroke S /mm Max/Min	Piston Rod Diameter d /mm	Piston Area F /cm²	Piston Rod Area F₁ /cm²	Effective Area at Rod End F₂ /cm²	Nominal Pressure MPa
						6.3		10		16
						Thrust (N)	Pull (N)	Thrust (N)	Pull (N)	Thrust (N)	Pull (N)
50	50/500	28	19.64	6.16	13.48	12400	8500	19600	13500	31400	21600
63	63/630	35	31.17	9.62	21.55	19640	13570	31170	21550	49900	34500
80	80/800	45	50.27	15.90	34.37	31600	21700	50300	34400	80000	55000
100	100/1000	55	78.54	23.76	54.78	49500	34500	78500	54800	125700	87600
125	125/1250	70	122.70	38.48	84.22	77250	53200	122700	84200	196300	135000
160	160/1600	90	201.06	63.62	137.44	126700	86600	201000	137400	321700	220000
200	200/2000	110	314.20	95.03	219.17	197900	138000	314000	219200	502700	350000
250	250/2500	140	490.87	153.94	336.93	309250	212270	490870	336930	785400	539100

Note: When selecting a hydraulic cylinder, add 10% to the calculated force to account for pipeline resistance and friction loss in the mechanism.

Hydraulic Cylinders for Heavy Metallurgical Equipment (JB 2162-91)

Hydraulic Cylinder Bore D / mm	Piston Rod Diameter d / mm	Allowable Stroke Mounting Type					Nominal Pressure
		Allowable Stroke Mounting Type					6.3		10		16
		S	G	B	T	W	Thrust Force / kN	Pull Force / kN	Thrust Force / kN	Pull Force / kN	Thrust Force / kN	Pull Force / kN
50	28	400	1000	630	1000	450	12.40	8.50	19.60	13.50	31.40	21.60
63	36	550	1250	800	1250	630	19.64	13.22	31.17	20.99	49.90	33.58
80	45	800	1600	1000	1600	800	31.67	21.70	50.30	34.40	80.00	55.00
100	56	1000	2000	1250	2000	1000	49.50	34.00	78.50	54.00	125.70	86.30
125	70	1250	2500	1600	2500	1250	77.30	53.20	122.70	84.20	196.35	135.00
160	90	1600	3200	2000	3200	1800	126.70	86.60	201.00	137.40	321.70	220.00
200	110	2000	3600	2500	3600	2000	197.90	138.00	314.00	219.20	502.70	350.00
250	140	2500	4750	3200	4750	2800	309.25	212.27	490.90	330.93	785.40	539.00
